touchTymp Diagnostic

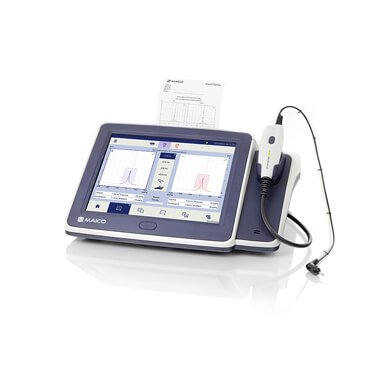

Our diagnostic touchTymp versions are just as intuitive and easy to use as the screening versions. For a more complete evaluation of the middle ear, they come with additional diagnostic functions. The touchTymp MI 34 and 36 feature a lightweight shoulder box for both screening and diagnostic purposes. The shoulder box can easily be clipped to your patient's top for controlled handling. Use the comprehensive standard protocols for immediate operation of all screening and diagnostic test processes: tympanometry with 226 Hz, tympanometry with automatic acoustic reflexes or at a fixed level, reflex decay measurements and Eustachian tube function testing (ETF). Additionally, the touchTymp MI 36 offers AC & BC audiometry.

Features at a glance:

  • High resolution and quick screen transitions
  • Full touch-based interface for intuitive handling
  • Diagnostic shoulder box probeProbe tones 226 Hz, 678 Hz, 800 Hz and optional 1 kHz
  • Acoustic reflex stimuli 500 Hz, 1 kHz, 2 kHz, 4 kHz, BB, HP, LP (ipsilateral and optional contralateral)
  • Reflex Decay test (ipsilateral and contralateral)ETF test for intact and perforated eardrumstouchTymp MI 36 includes AC & BC audiometryBuilt-in printer
  • Optional MAICO Sessions PC software connectable with OtoAccess® or Noah patient database for easy data management



With Audiometry Functions for a Small Footprint

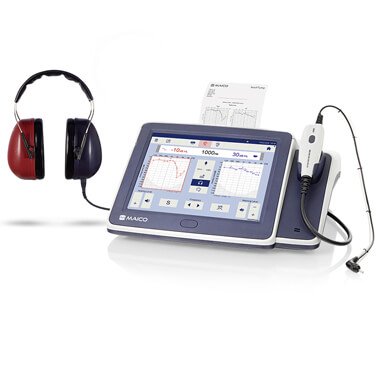

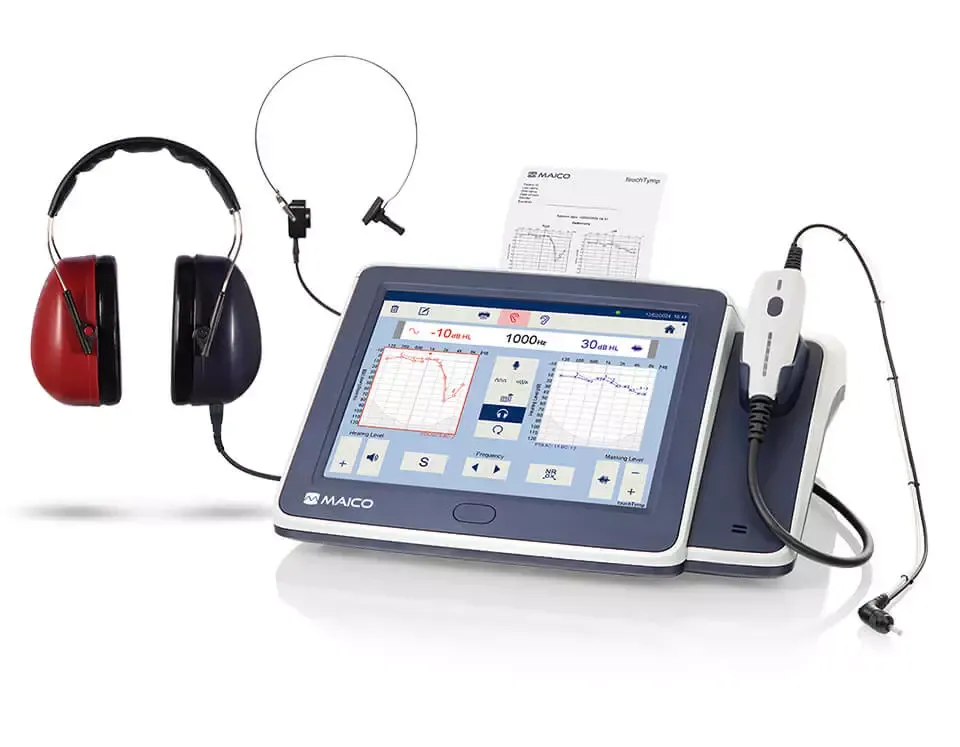

Our touchTymp MI 36 combines middle ear analysis with air conduction and bone conduction audiometry in one exceptional device. Easily switch between the tests without reorganizing from one to another device and benefit from its small footprint. Perfect for limited desk space and easy workflows.


Middle Ear Testing for All Ages

You and your patients are diverse – and so is our touchTymp line. The touchTymp MI 34 & MI 36 are designed for the needs of all ages. Perform screening tests from newborn patients to older adults. The optional high-frequency probe tone of 1 kHz is ideal for providing reliable results when testing infants.

middle ear analysis with MAICO touchTymp RaceCar

Tympanometry for Children Has Never Been so Exciting

Our new touchTymp RaceCar makes immittance testing easy and fast by focusing the child’s attention on an exciting animated car race for the duration of the tympanometry or reflex screening procedure. The colorful animation engages the child, reducing the likelihood of breaking the seal between probe tip and ear and having to retest. This saves you time and effort, while also making the screening procedure more enjoyable for your little patient! In addition to the car race animation, the touchTymp RaceCar is available with all the protocols of touchTymp MI 24 and touchTymp MI 26.



Printing and Data Management Made Easy

Customize touchTymp’s software to show only the data you need in your preferred language (English, German, Spanish, French, Italian, Polish, Portuguese, Turkish, Russian or Chinese). The intuitive icons lead you through your data with very few clicks and make it easy to compare a patient’s measurements. Save time by using the touchTymp built-in printer: Just place the probe into its holder to instantly and fully automatically print test results and reports.


*Please note: These are the international datasheets. Specifications may vary by country.
You´ll find all datasheets in various languages and more in our Download Center

Do you already know our
touchTymp MI 24 and MI 26
for screening requirements ?

Simply Intuitive Impedance Testing and Middle Ear Analysis with our touchTymp solutions for screening eases your work significantly.
